SCHILLING - Aluminum gantry crane

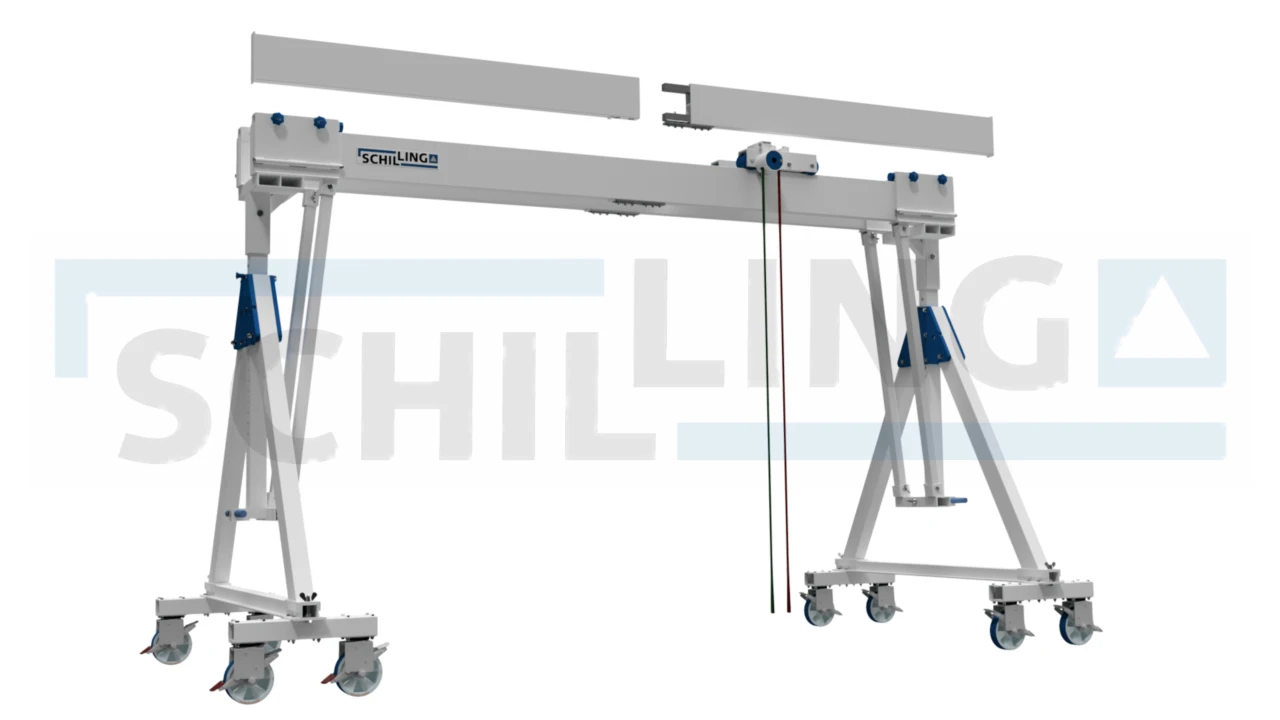

The aluminum gantry crane. Movable even under load

The height and length adjustable crane system from SCHILLING – flexible and powerful and above all, with unrestricted mobility even under load, an invaluable advantage when it comes to the exact positioning of machines, for example. At rest when not in use, the rolling and swivelling movements can be blocked.

The SCHILLING aluminum gantry crane can be assembled and disassembled in a very short time and with relatively few manual operations. No structural modifications (e.g., dowel fastenings or similar) are necessary. Lightweight construction, with extremely high stability.

suspension point at the bolt of the trolley min. - max. in mm: 2135 - 2485
total height min.- max. in mm: 2235 - 2585
adjustment range of the beam support in mm : 350
adjustment range of the adjustment foot in mm : 0
total adjustment range in mm : 350
total width of the crane max. in mm: 4585
distance between the lateral stands on the floor max. in mm: 3393
aluminium beam: separable alu double beam
Beam profile in mm: 220x60 - mit zusätzlich verstärkten Wandungen
total beam length in mm: 4100
usable beam length in mm: 3399
length of the split beam parts in mm : 2000 / 2000
One of the two pieces (with sleeve) can be used as a single double beam.
The following combinations are possible:
1. beam length in mm : 4000
2. beam length in mm : 2000
beam housing 1: sleeve 92x92 with bump stop and connection point for brace
beam housing 2: end piece
stand brace profile in mm: 120x80
beam support profile in mm : 81x81
length of the beam support 1 / 2 in mm: 1090 / 1090
number of wheels per lateral stand: 4x per lateral stand

• Steel casters
• Heavy-duty polyurethane lining
• With integrated caster and swivel head brake

When not in motion the rolling and swivel functions can be locked.

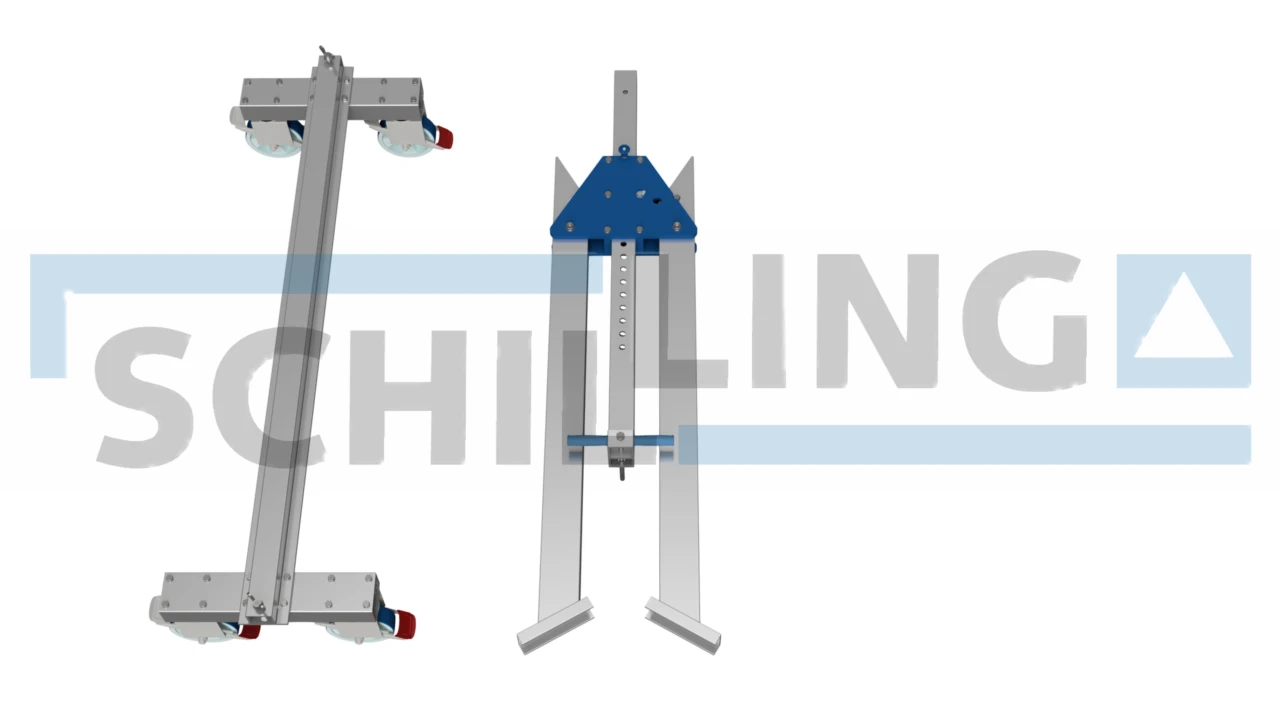

• Two lateral stands, foldable
  with one height-adjustable beam support

  grid dimension: 50 mm

• with 4 sheet steel swivel castors
  Heavy duty polyurethane tread with integrated wheel and swivel lock.

  Wheel diameter: 200 m
  Wheel width: 50 mm
• The lateral stands can be folded up effortlessly and can therefore be stowed, stored, and transported in a space saving manner.
• One set of aluminium double beams
  The aluminium beam can be taken apart, e.g., for transport or storage purposes, and is therefore extremely space saving.
  The aluminium beam is relatively light, mobile, quick, and easy to assemble (a set consists of two single beams).
  Separable resp. pluggable aluminium beam.

• One overhead lockable trolley
  The trolley is used to hold the chain hoist or alternatively the lifting straps.
  Due to the overhead trolley, the maximum lift can be used in relation to the total height.
  Even under full load, the trolley is infinitely adjustable and can be locked in any position.
• Four bump stops
  As collision protection for the trolley
• One beam mounting
  This fixes the two aluminium supports in exact parallelism.
• One integrated horizontal adjuster
  Through the use of the horizontal adjuster the usable length of the aluminium Gantry Crane can be adjusted smoothly between the two lateral stands.
  The running track width of the aluminium beam is variable.
  This guarantees a higher level of flexibility for the user.

• electric trolley - radio control
• electric trolley - direct
• Electric chain hoist - radio
• Pulley block made of aluminum
• Electric chain hoist
• Cabling, power supply
• circulating belt / rope
• Manual winch for SCHILLING aluminum gantry crane
• Chassis for aluminum gantry crane
• Wall bracket for aluminum gantry crane
